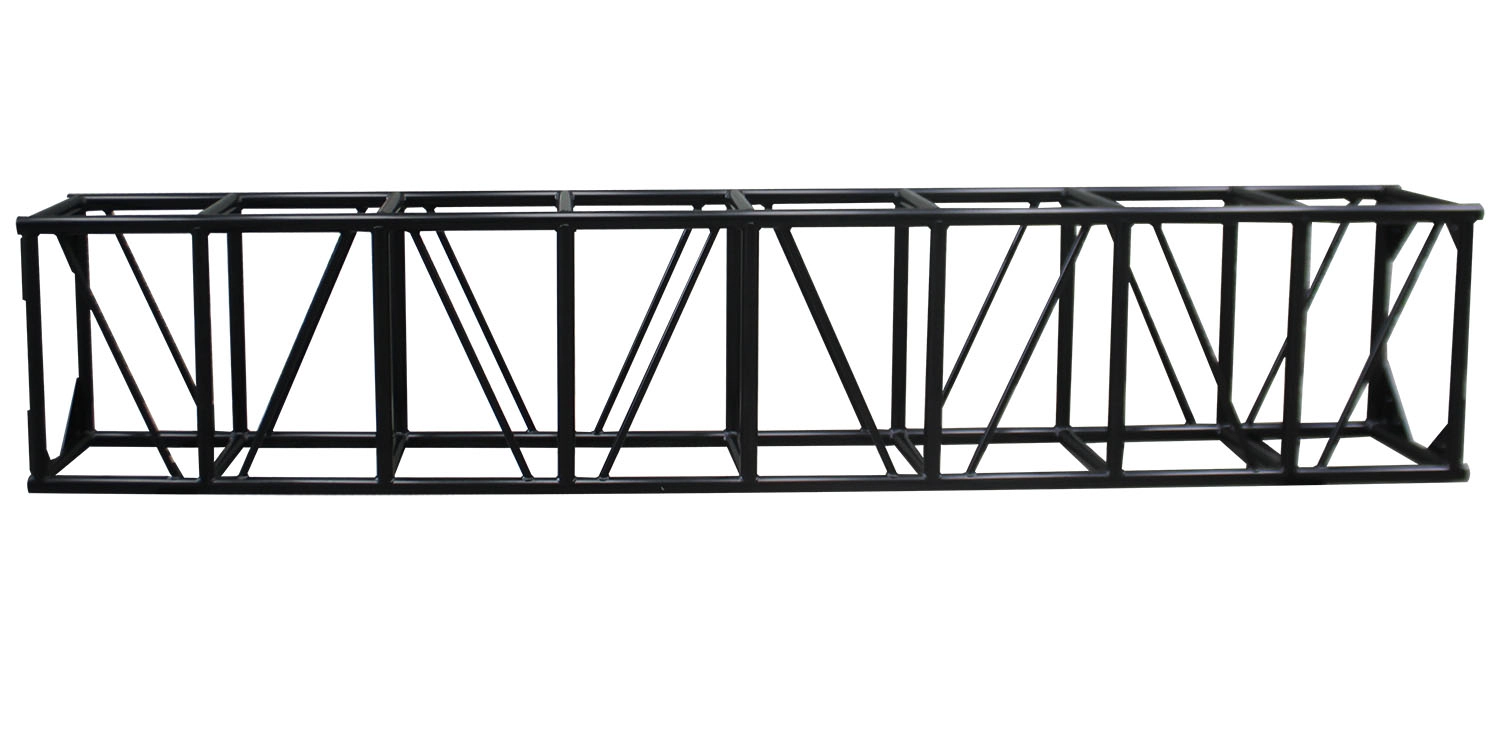

F74 RECTANGULAR TRUSS

F74 with excellent load capacity on free spans of 24m (80 feet) or to be used as tower elements with an extra welded climbing brace on one side . F74 is using the 4mm wall thickness in the maintube which assures durability and extra strength. Designed for high frequency usage or installations, which demands higher loading.

Ideal trussing system for rental, touring and exhibition companies.

Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 .

Inquire

Add to Basket

Share to:

Product Description

F74_01 F74_02

Features

Ideal trussing system for rental, touring and exhibition companies.

Made with the fast connection system and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 .

F74_04

Facts

TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 4 mm for 50 mm main tubes

Specifications F74

Metric

Imperial

Height

Width

MainTube

Braces

Weight

PinPosition

Material

Connection

610mm

410 mm

50 x4 mm

50 x 3 mm

30 x 3 mm

~15.78kg/m

Diagonal

EN AW-6082 T6

Cs6

24.0in

16.1in

1.97x 0.16 in

1.97 x 0.12 in

1.18 x 0.12 in

~34.79 lbs/m

F74_07 F74_08 F74_09
