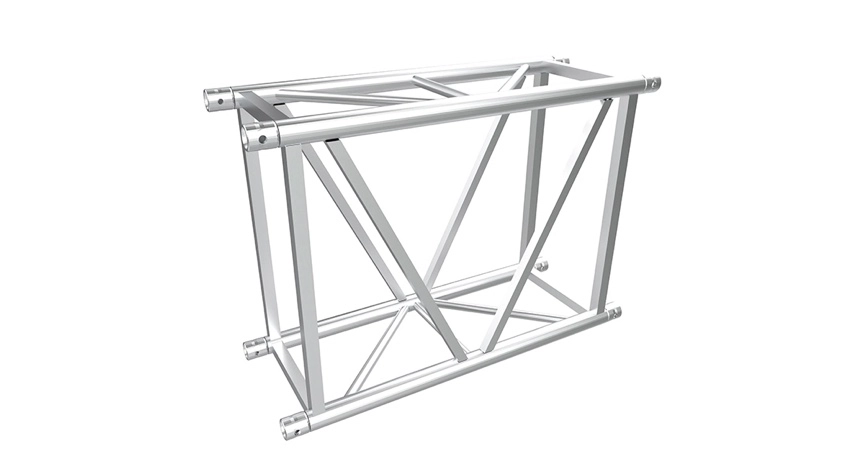

F154 RECTANGULAR TRUSS

F154 truss is constructed of main tubes (100 x 8 mm) and diagonals(50x3mm),and uses the CS10 coupling system.SHINESTAGE supplies a variety of F154 truss elements that provide maximum flexibility, including standard or custom-made lengths, circles and arches and some corners. SHINESTAGE can create custom-made pieces on request.

Inquire

Add to Basket

Share to:

Product Description

F154_01

Features

F154 truss is constructed of main tubes (100 x 8 mm) and diagonals(50x3mm),and uses the CS10 coupling system.ShineStructures supplies a variety of F154 truss elements that provide maximum flexibility, including standard or custom-made lengths, circles and arches and some corners. ShineStructures can createcustom-made pieces on request.

F154_03

Facts

TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 8mm for 100 mm main tubes

Specifications F154

Metric

Imperial

Height

Width

MainTube

Braces

Weight

PinPosition

Material

Connection

1450 mm

770 mm

100 x 8 mm

50 x 3 mm

60 x 60 x 4 mm

~65kg/m

Diagonal

EN AW-6082 T6

Cs10

3.94 x 0.31 in

1.97 x 0.12 in

2.36 x2.36 x 0.16 in

~143.3 lbs/m

F154_05 F154_06 F154_07
