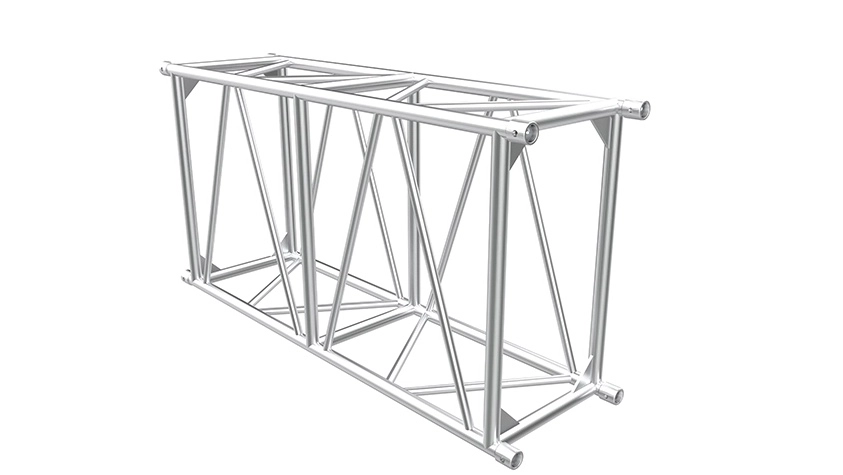

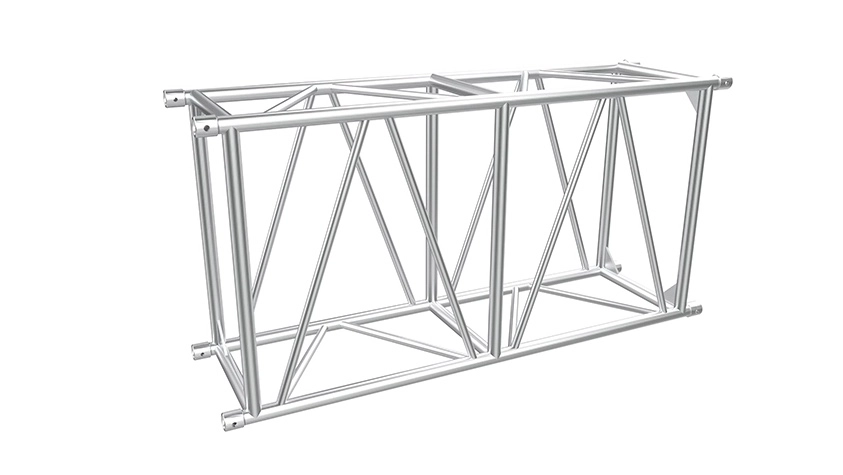

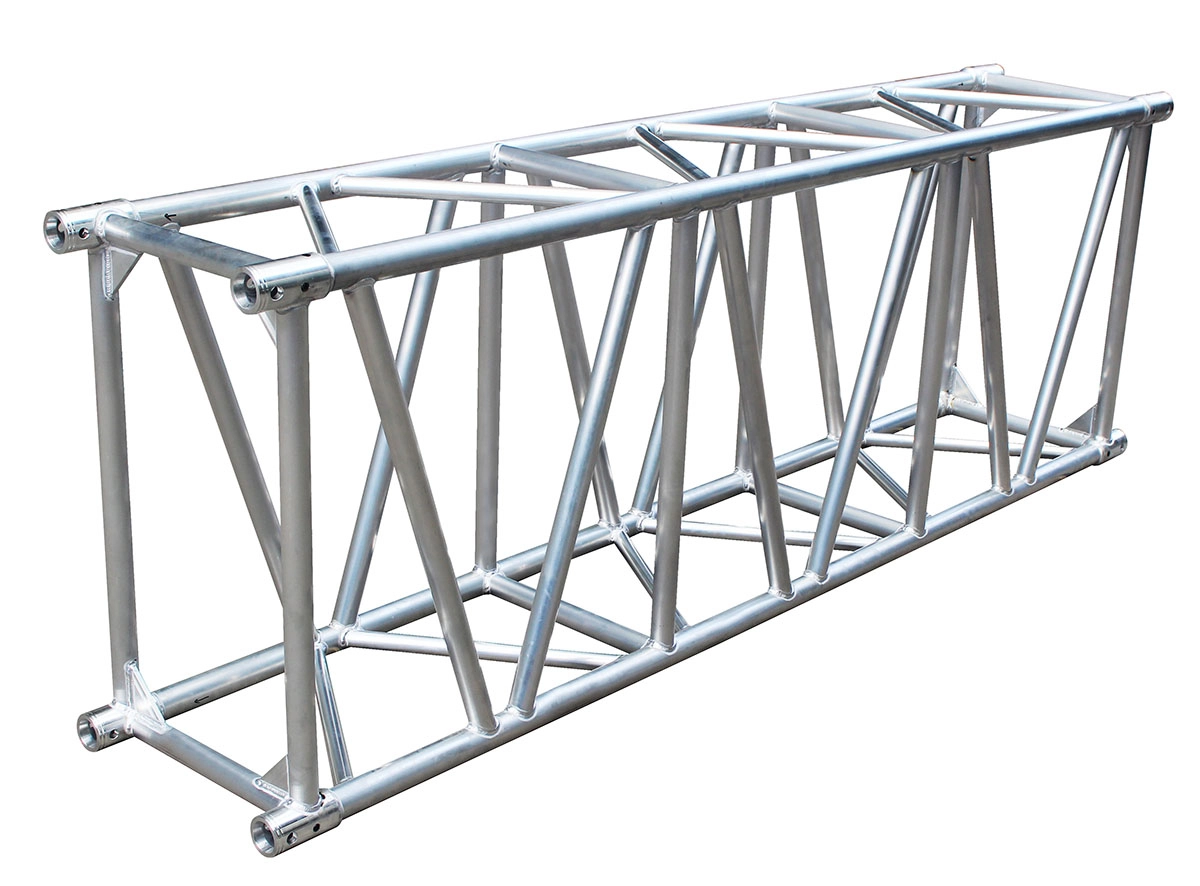

F104 RECTANGULAR TRUSS

F104 truss is constructed of main tubes (50 x 5 mm) and diagonals(50x3mm),and uses the CS6 coupling system.ShineStructures supplies a variety of F104 truss elements that provide maximum flexibility, including standard or custom-made lengths, circles and arches and some corners. ShineStructures can createcustom-made pieces on request.tem and approved according the DIN EN 1999-1-1 & 1999-1-1/A2 .

Inquire

Add to Basket

Share to:

Product Description

F104_01

Features

F104_03

Facts

TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 5 mm for 50 mm main tubes

Specifications F104

Metric

Imperial

Height

Width

MainTube

Braces

Weight

PinPosition

Material

Connection

1010 mm

580 mm

50 x 5 mm

50 x 3 mm

30 x 3 mm

~24.19kg/m

Diagonal

EN AW-6082 T6

Cs6

39.8 in

22.8 in

1.97x 0.20 in

1.97 x 0.12 in

1.18 x 0.12 in

~53.33 lbs/m

F104_05 F104_06 F104_07
